The ignition system in a vehicle is a crucial component responsible for igniting the air-fuel mixture in the engine's combustion chambers. This process generates the necessary power to propel the vehicle. Here’s an overview of the ignition system, its components, operation, types, and advancements:
Components of an Ignition System:
1. Battery:
- Provides electrical power to the ignition system, typically 12 volts DC.
2. Ignition Switch:
- Controls the supply of electrical power from the battery to the ignition system and other electrical components in the vehicle.
3. Ignition Coil:
- Converts low voltage (from the battery) into high voltage required to create a spark at the spark plugs.
- Modern vehicles often use coil-on-plug (COP) systems where each cylinder has its own ignition coil.

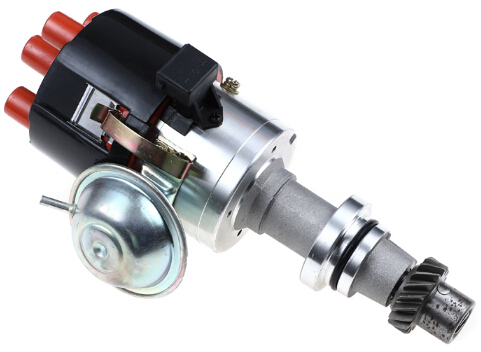

4. Distributor (in older systems):
- Distributes high voltage from the ignition coil to the correct spark plug at the correct time in the engine's firing order.
5. Spark Plugs:
- Receive high voltage electricity from the ignition coil.
- Generate sparks across the spark plug gap to ignite the air-fuel mixture in each cylinder.
6. Ignition Control Module (ICM):
- Controls the timing and firing of the ignition coil based on input signals from sensors like the crankshaft position sensor.
7. Crankshaft Position Sensor:
- Provides information about the position and speed of the crankshaft to the engine control unit (ECU) for precise ignition timing.
Operation of the Ignition System:
1. Starting Process:
- When the ignition switch is turned on, electrical power flows from the battery to the ignition coil and other components.
2. Ignition Coil Charging:
- The ignition coil charges up during the compression stroke of the engine, building up high voltage.
3. Spark Generation:
- The ignition control module (ICM) triggers the ignition coil to release the stored high voltage.
- This high voltage is sent through the spark plug wire to the spark plug, creating a spark across the spark plug gap.
4. Combustion:
- The spark ignites the compressed air-fuel mixture in the cylinder, initiating combustion.
- The burning gases expand, driving the piston down and producing power to rotate the crankshaft.
5. Timing Adjustment:
- The ignition timing is precisely controlled by the engine control unit (ECU) based on input from sensors to optimize engine performance, fuel efficiency, and emissions.
Types of Ignition Systems:
1. Conventional Ignition System:
- Found in older vehicles, it uses a distributor to distribute high voltage to each spark plug via spark plug wires.
2. Electronic Ignition System:
- Replaced conventional systems and uses solid-state electronics to control ignition timing and firing of the ignition coil.
- More reliable and efficient than conventional systems.
3. Distributorless Ignition System (DIS):
- Uses multiple ignition coils (coil-on-plug) or a single coil pack with multiple outputs.
- Eliminates the need for a distributor and improves reliability and performance.
4. Direct Ignition System (DIS) or Coil-on-Plug (COP):
- Each cylinder has its own ignition coil mounted directly on the spark plug.
- Provides precise ignition timing control and eliminates spark plug wires.
Advancements in Ignition Technology:
1. Variable Timing Systems:
- Variable Valve Timing (VVT) and Variable Valve Lift (VVL) systems adjust valve timing and lift for optimal engine performance and efficiency.
2. Electronic Control:
- Engine control units (ECUs) continuously monitor and adjust ignition timing and fuel injection based on real-time sensor data.
3. High-Energy Ignition Systems:
- Employ advanced materials and design to generate higher energy sparks for improved combustion efficiency.
4. Electronic Distributorless Ignition System (EDIS):
- Integrates ignition coil control and timing adjustment into a single electronic module for enhanced reliability and performance.
5. Integrated Systems:
- Modern vehicles often integrate ignition systems with other vehicle control systems, such as traction control and stability control, for improved safety and performance.
Conclusion:
The ignition system plays a critical role in starting and operating a vehicle's engine efficiently and reliably. Advancements in ignition technology have led to more efficient and reliable systems, improving engine performance, fuel efficiency, and reducing emissions. Understanding the components, operation, and types of ignition systems helps in diagnosing issues and maintaining optimal engine performance in modern vehicles.
