Components of camlock couplings

Camlock couplings, also known as cam and groove couplings, are quick-connect fittings used to connect and disconnect hoses, pipes, and other fluid transfer lines rapidly and securely. These couplings are widely used in various industries, including agriculture, manufacturing, oil and gas, chemical, and firefighting, among others. They are known for their ease of use, efficiency, and reliability.

Key features and components of camlock couplings include:

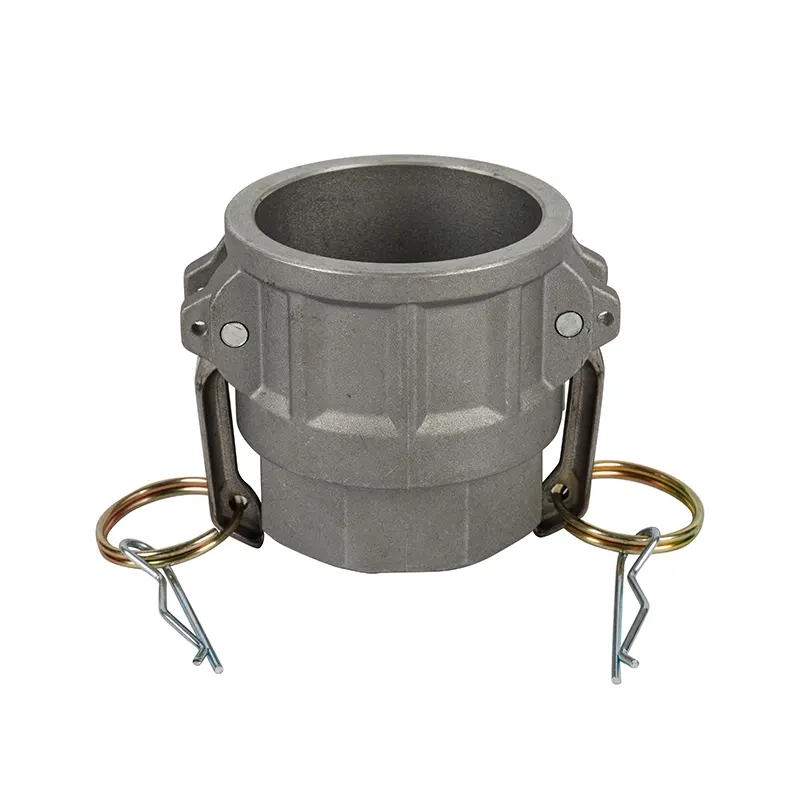

1. Cam Arms: Camlock couplings consist of two mating parts, each with cam arms. One part is typically referred to as the "male" or "adapter," which has cam arms on the outside. The other part is known as the "female" or "coupler," which has cam arms on the inside.

2. Cam Grooves: The cam arms on both the male and female parts have a curved groove or indentation that allows them to interlock and create a secure connection when the two parts are pressed together.

3. Gaskets or Seals: Camlock couplings may come with gaskets or seals made of various materials, such as rubber, silicone, or PTFE. These gaskets help create a tight and leak-proof connection between the two mating parts.

4. Materials: Camlock couplings are commonly made from materials like aluminum, stainless steel, brass, and polypropylene, depending on the application and the type of fluid being transferred.

5. Types and Sizes: Camlock couplings come in various types, such as Type A, B, C, D, E, F, DC, and DP, each with specific applications and features. They are also available in different sizes to accommodate various hose or pipe diameters.

Benefits of Camlock Couplings:

- Quick Connect/Disconnect: Camlock couplings allow for fast and effortless connection and disconnection, reducing downtime during fluid transfers.

- Versatility: They can be used with a wide range of fluids, including water, chemicals, petroleum, and even dry powders.

- Secure and Leak-Proof: When properly engaged, camlock couplings create a secure and leak-proof connection, preventing spills and wastage.

- Interchangeability: Camlock couplings of the same type and size can be interchanged regardless of the material used for construction, as long as they meet compatibility requirements.

- Durability: Depending on the material used, camlock couplings can withstand various operating conditions and resist corrosion and wear.

It's important to ensure that the correct type and size of camlock coupling are used for the specific application and fluid transfer to maintain safety and efficiency. Regular inspection and maintenance are also essential to prolong the life of the couplings and prevent any potential issues.
