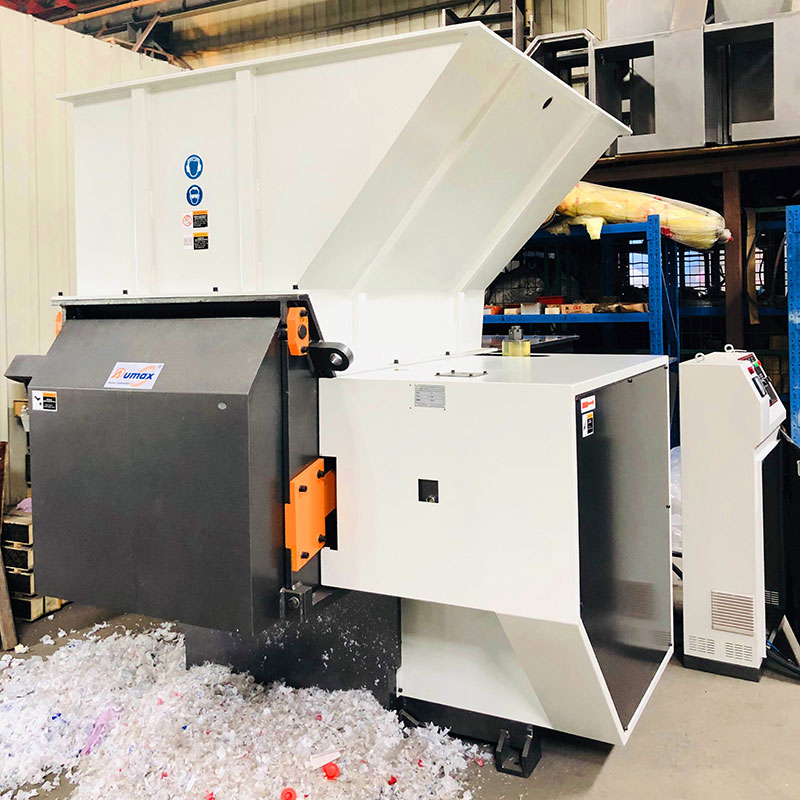

How a single shaft plastic shredder typically operates

A single shaft plastic shredder is a machine used in the recycling industry to break down plastic materials into smaller pieces or particles. These shredders are designed to handle various types of plastic waste, including bottles, containers, films, pipes, and other plastic products. Here's an overview of how a single shaft plastic shredder typically operates:

1. Material Feed: Plastic waste is fed into the shredder either manually or through a conveyor belt system. The material is typically loaded into a hopper or feeding mechanism that directs it towards the shredding chamber.

2. Shredding Chamber: Inside the shredder, there is a rotating shaft with blades or cutting elements attached to it. The shaft is typically driven by a motor, causing it to rotate at high speed. The plastic waste is subjected to intense mechanical force as it enters the shredding chamber.

3. Cutting Action: As the plastic waste comes into contact with the rotating blades, it is cut, torn, and sheared into smaller pieces. The design of the blades and the configuration of the shredding chamber determine the size and shape of the shredded particles.

4. Screening or Filtering: Some single shaft shredders incorporate screens or filtering mechanisms to control the size of the shredded material. These screens can be interchangeable to achieve different particle sizes, depending on the recycling requirements.

5. Discharge: Once the plastic waste is shredded to the desired size, the shredded material is discharged from the shredder either onto a conveyor belt or into a collection bin. From there, it can be further processed, recycled, or disposed of, depending on the specific application.

Key features and characteristics of single shaft plastic shredders include:

- Robust Construction: These shredders are typically built with heavy-duty materials to withstand the high forces involved in shredding plastic waste.

- Versatility: Single shaft plastic shredders can handle a wide range of plastic materials and products, making them suitable for various recycling applications.

- Safety Features: Shredders may incorporate safety features such as emergency stop buttons, safety guards, and automatic overload protection to ensure operator safety.

- Efficiency: Modern shredders are designed for high efficiency and throughput, allowing for continuous operation in recycling facilities.

- Low Maintenance: Many single shaft shredders are designed for easy maintenance, with access panels and removable screens to facilitate cleaning and blade replacement.

Overall, single shaft plastic shredders play a crucial role in the recycling industry by reducing plastic waste volume, preparing materials for further processing, and promoting sustainable waste management practices.
