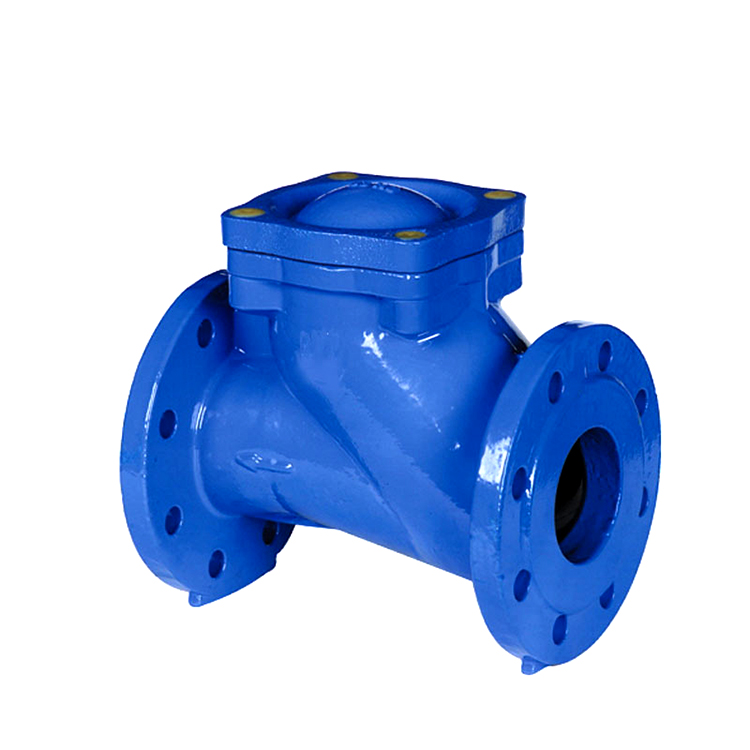

Iron Ball Check Valve Overview

An iron ball check valve is a type of non-return valve that allows fluid to flow in one direction while preventing backflow. This valve is commonly used in various industrial applications where reliable backflow prevention is critical. Here’s an in-depth look at its design, functionality, applications, and benefits.

Design and Functionality

1. Structure:

- Body Material: Made from cast iron or ductile iron, providing durability and resistance to pressure and temperature variations.

- Ball: A spherical ball typically made from stainless steel, rubber-coated metal, or another durable material that moves freely within the valve body.

- Seat: A precisely machined seat where the ball rests to create a seal when backflow occurs.

2. Operation:

- Flow Direction: Fluid enters the valve, lifting the ball off its seat, allowing flow through the valve.

- Backflow Prevention: When the flow stops or reverses, the ball moves back onto the seat, creating a tight seal and preventing backflow.

Key Features

1. Durability:

- Robust Construction: Iron body ensures longevity and resistance to mechanical stress.

- Corrosion Resistance: Often coated or treated to resist corrosion, especially in harsh environments.

2. Simplicity:

- Simple Mechanism: Fewer moving parts compared to other check valves, resulting in lower maintenance requirements.

- Easy Installation: Can be installed horizontally or vertically, depending on the application.

3. Reliability:

- Effective Sealing: The ball and seat design ensures a reliable seal to prevent backflow.

- Low Maintenance: Minimal wear and tear due to the simple design, reducing the need for frequent maintenance.

4. Versatility:

- Wide Range of Sizes: Available in various sizes to accommodate different flow rates and piping requirements.

- Adaptable to Different Fluids: Suitable for various fluids, including water, oil, and some chemicals.

Applications

1. Water and Wastewater Treatment:

- Used in pipelines to prevent backflow of contaminated water.

- Essential in sewage and stormwater systems to ensure unidirectional flow.

2. Industrial Processes:

- Utilized in chemical processing plants to prevent cross-contamination.

- Common in oil and gas pipelines to maintain flow direction and system integrity.

3. HVAC Systems:

- Incorporated in heating, ventilation, and air conditioning systems to prevent backflow and ensure efficient operation.

4. Fire Protection Systems:

- Installed in fire suppression systems to maintain the integrity of the water supply.

Benefits

1. Cost-Effective:

- Lower Initial Cost: Generally more affordable than other types of check valves.

- Reduced Maintenance Costs: Simple design leads to less frequent maintenance and lower operational costs.

2. Efficiency:

- Minimal Flow Restriction: The design allows for efficient flow with minimal pressure drop.

- Quick Response: The ball quickly moves to seal the valve during backflow conditions, preventing fluid reversal.

3. Safety and Compliance:

- Backflow Prevention: Essential for systems where backflow can cause contamination or damage.

- Compliance: Helps meet regulatory requirements for backflow prevention in various industries.

4. Longevity:

- Durable Materials: Iron construction ensures long service life even in demanding applications.

- Reliable Performance: Consistent operation over time, ensuring system reliability.

Conclusion

Iron ball check valves are a reliable, cost-effective solution for preventing backflow in a variety of industrial applications. Their simple yet robust design, combined with ease of installation and low maintenance requirements, makes them an ideal choice for systems where durability and reliability are paramount. Whether used in water treatment, industrial processes, HVAC systems, or fire protection, these valves provide effective backflow prevention to ensure system integrity and safety.
