Key components and steps involved in a solid wall pipe extrusion line

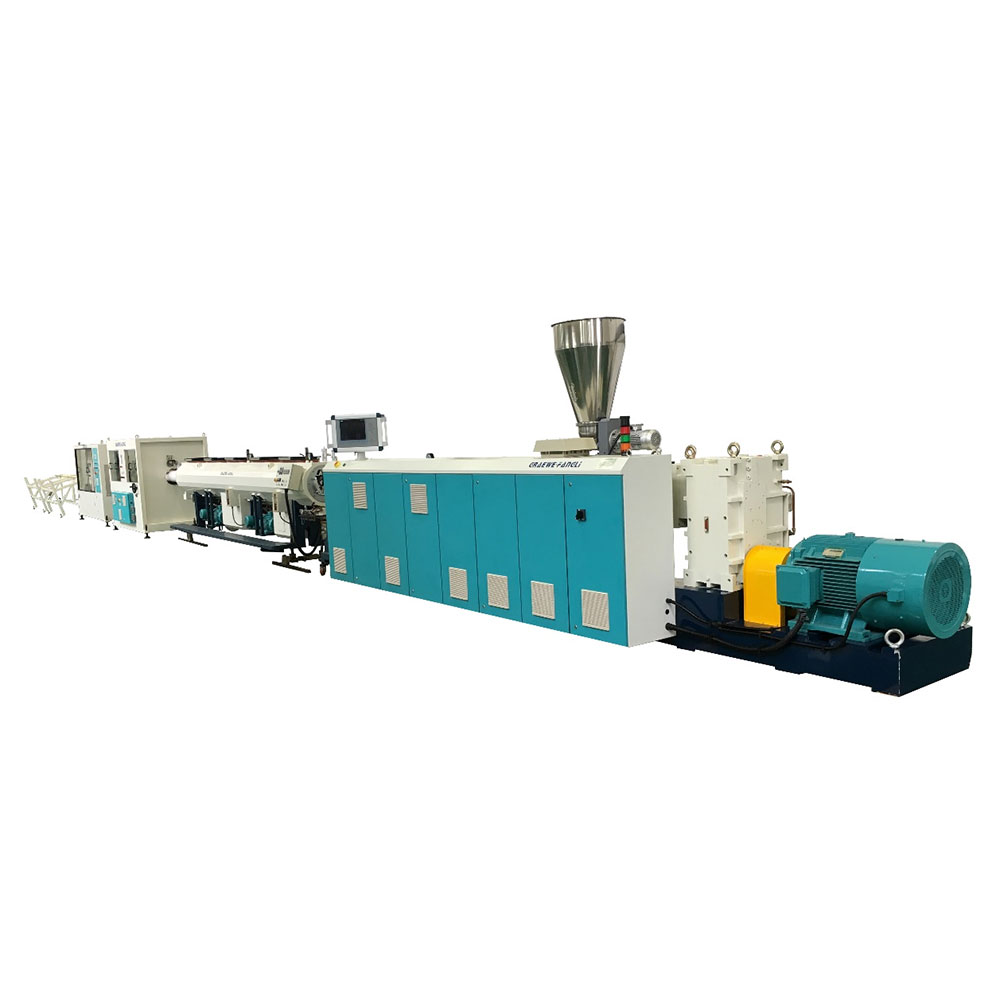

A solid wall pipe extrusion line is a manufacturing process used to produce pipes with a uniform, continuous, and solid wall structure. This process typically involves the extrusion of plastic materials to form pipes with specific dimensions and properties. Here are the key components and steps involved in a solid wall pipe extrusion line:

1. Raw Material Handling:

  - The process begins with the handling of raw materials, which are typically plastic resins in the form of pellets or powder. Common materials used for solid wall pipe extrusion include polyvinyl chloride (PVC), polyethylene (PE), and polypropylene (PP).

2. Material Conveyance and Drying:

  - The raw material is conveyed to a drying system to remove any moisture. Proper drying is essential to ensure the quality of the final product.

3. Extruder:

  - The dried plastic material is fed into an extruder, a machine that melts and forms the material into a consistent molten state. The extruder consists of a barrel, a screw, and a heating system.

4. Die Head:

  - The molten plastic material is then passed through a die head, which shapes the material into the desired pipe profile. In the case of solid wall pipes, the die head forms a continuous solid cylinder.

5. Cooling and Sizing:

  - The extruded pipe passes through a cooling system, which may include water tanks or air cooling, to solidify the molten plastic. Sizing tools are used to control the outer diameter of the pipe.

6. Traction and Cutting:

  - A traction system pulls the newly formed pipe through the production line at a controlled speed. A cutting system then cuts the pipe to the desired length.

7. Quality Control:

  - Throughout the process, various quality control measures are implemented to ensure the final product meets the required specifications. This may include monitoring dimensions, wall thickness, and visual inspection.

8. Socketing (Optional):

  - In some cases, the extruded pipes may undergo socketing or other end-forming processes to create specialized pipe ends for specific applications.

9. Packaging and Storage:

  - The finished pipes are packaged and prepared for shipping or storage. Proper packaging helps protect the pipes during transportation and storage.

Solid wall pipe extrusion lines can produce pipes of various diameters and lengths, depending on the specifications of the extrusion equipment. These pipes find applications in industries such as water supply, drainage, plumbing, and infrastructure. The choice of materials, processing parameters, and quality control measures are crucial in ensuring the durability and performance of the final product.
