Purpose and Function of Voltage Transformer

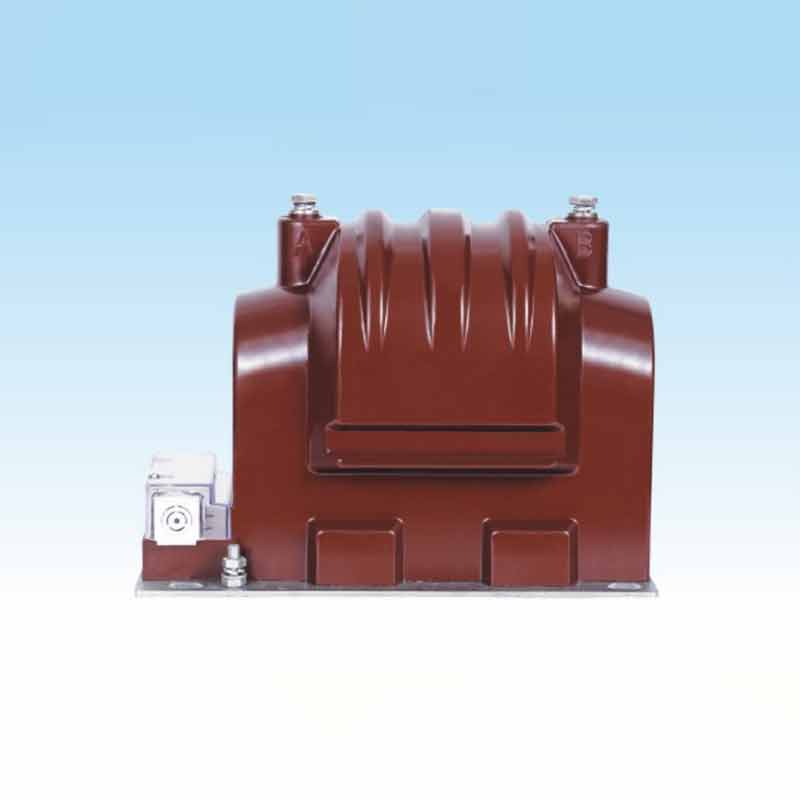

A voltage transformer (VT), also known as a potential transformer (PT), is a type of transformer used in power systems to step down high voltage to a lower, more manageable voltage for measurement, monitoring, and protection purposes. Here are the key aspects of voltage transformers:

Purpose and Function

1. Voltage Reduction: VTs reduce high primary voltages to standardized low secondary voltages (e.g., 110V or 120V) that can be safely handled by measuring instruments and protective relays.

2. Isolation: They provide electrical isolation between high-voltage power circuits and low-voltage control and measuring circuits, enhancing safety.

3. Accuracy: VTs are designed to have high accuracy and low phase shift to ensure precise voltage measurements.

Construction and Types

1. Electromagnetic Voltage Transformers: These use traditional transformer principles with windings and magnetic cores. They are suitable for medium voltage ranges.

2. Capacitive Voltage Transformers (CVTs): Used for high-voltage applications, they use a combination of capacitors and electromagnetic transformers to step down voltage. CVTs are also used for carrier communication over power lines.

Applications

1. Metering: Accurate measurement of system voltages for billing and monitoring.

2. Protection: Providing voltage inputs to protective relays, ensuring system stability and protection during faults.

3. Control Systems: Supplying voltages to control circuits in substations and power plants.

Key Specifications

1. Rated Primary Voltage: The high voltage to be transformed.

2. Rated Secondary Voltage: The low voltage output for measurement.

3. Accuracy Class: Indicates the precision of the voltage ratio and phase angle, critical for metering and protection.

4. Burden: The load in VA (volt-amperes) that the VT can support while maintaining accuracy.

Installation and Maintenance

- VTs should be installed in environments free from excessive dust, moisture, and vibrations.

- Regular testing and calibration are necessary to maintain accuracy and reliability.

- Visual inspections for any signs of damage or wear are important for early detection of potential issues.

Safety Considerations

- Proper insulation and grounding are crucial to prevent electrical hazards.

- Maintenance personnel should follow strict safety protocols when handling VTs due to the high voltages involved.

Common Standards

- IEC 61869-3 and IEEE C57.13 are widely recognized standards that specify the requirements and testing methods for voltage transformers.

Understanding these aspects of voltage transformers is essential for their effective application in electrical power systems, ensuring accurate measurement, monitoring, and protection.
