Understanding Large Reflow Soldering: Essential Insights for High-Volume Electronics Manufacturing

In the world of electronics manufacturing, reflow soldering is a fundamental process that ensures the reliable connection of electronic components to printed circuit boards (PCBs). For high-volume production, large reflow soldering systems play a crucial role in achieving consistent quality and efficiency. This blog will explore the large reflow soldering process, its benefits, and key considerations for optimizing your production line.

What is Large Reflow Soldering?

Large reflow soldering refers to the reflow soldering process scaled up to accommodate larger or higher quantities of PCBs and electronic assemblies. This process involves heating solder paste to a temperature that melts the solder, forming a solid connection between the electronic components and the PCB upon cooling.

The Reflow Soldering Process

1. Solder Paste Application: The process begins with applying solder paste to the PCB. Solder paste is a mixture of solder powder and flux, which is deposited onto the PCB using a stencil. This paste is placed on the PCB's pads where components will be mounted.

2. Component Placement: After solder paste application, electronic components are placed onto the PCB. This is typically done using automated pick-and-place machines, which accurately position the components onto the solder paste.

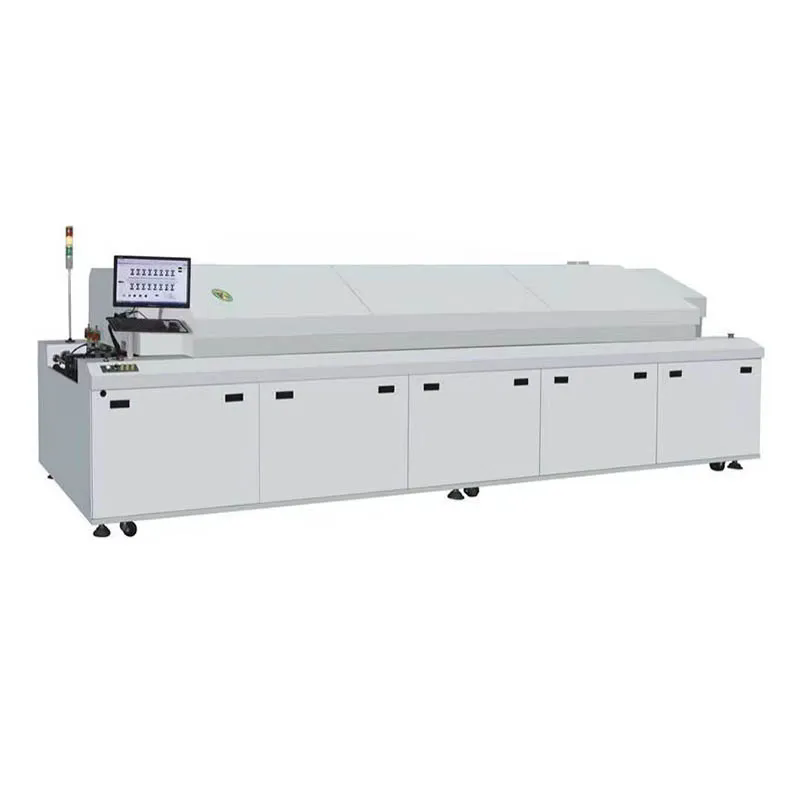

3. Reflow Heating: The PCB with components is then passed through a reflow oven. The oven gradually heats the assembly to a temperature where the solder paste melts and forms a solder joint. The temperature profile in the reflow oven is carefully controlled to ensure proper soldering without damaging the components.

4. Cooling: After reaching the peak temperature, the PCB is cooled down in a controlled manner. This cooling phase solidifies the solder joints and secures the components in place.

5. Inspection and Testing: Once the reflow soldering process is complete, the PCB is inspected for solder quality and component placement accuracy. Automated optical inspection (AOI) and other testing methods are used to ensure that the solder joints are free of defects and that the assembly meets quality standards.

Benefits of Large Reflow Soldering

1. High Efficiency and Throughput: Large reflow soldering systems are designed to handle high volumes of PCBs, making them ideal for large-scale manufacturing operations. These systems can process multiple boards simultaneously, significantly increasing production efficiency.

2. Consistent Quality: By using precise temperature control and automated processes, large reflow soldering systems ensure consistent solder quality across all PCBs. This consistency is crucial for maintaining the reliability and performance of electronic products.

3. Flexibility: Large reflow soldering systems can accommodate various PCB sizes and component types. This flexibility allows manufacturers to produce a wide range of electronic products without needing to invest in different soldering equipment.

4. Reduced Manual Labor: Automation in large reflow soldering systems minimizes the need for manual labor, reducing the risk of human error and improving overall production speed.

5. Improved Reliability: Properly controlled reflow soldering processes result in high-quality solder joints that enhance the reliability and longevity of electronic assemblies. This is critical for meeting the demands of modern electronics applications.

Key Considerations for Large Reflow Soldering

1. Temperature Profile Management: The temperature profile of the reflow oven must be carefully managed to ensure optimal soldering conditions. Factors such as heating rate, peak temperature, and cooling rate need to be precisely controlled to avoid defects like solder bridges or insufficient wetting.

2. Solder Paste Quality: The quality of solder paste significantly impacts the soldering process. High-quality solder paste with appropriate flux content and particle size ensures better solder joint formation and reduces the likelihood of defects.

3. PCB and Component Compatibility: Ensure that the PCBs and components used are compatible with the reflow soldering process. This includes considering the thermal sensitivity of components and ensuring that the PCB design supports proper heat distribution during soldering.

4. Maintenance and Calibration: Regular maintenance and calibration of reflow soldering equipment are essential for consistent performance. Ensure that the reflow oven and related machinery are maintained according to manufacturer recommendations and that temperature sensors are calibrated accurately.

5. Environmental Factors: Ambient conditions such as humidity and temperature can affect the soldering process. Maintaining a controlled environment within the manufacturing facility helps achieve optimal soldering results.

Conclusion

Large reflow soldering is a vital process in high-volume electronics manufacturing, offering efficiency, consistency, and flexibility. By understanding the reflow soldering process, managing key factors such as temperature profiles and solder paste quality, and ensuring proper equipment maintenance, manufacturers can achieve high-quality solder joints and reliable electronic assemblies. Embrace the benefits of large reflow soldering to enhance your production capabilities and meet the demands of modern electronics applications.
