Why Are Molded Case Circuit Breakers Essential for Electrical Protection?

When it comes to safeguarding electrical systems, one component stands out as a cornerstone in protecting both people and equipment: the molded case circuit breaker (MCCB). But what exactly makes MCCBs such an essential part of electrical installations? Let's explore the role, benefits, and applications of MCCBs and why they are critical for modern electrical systems.

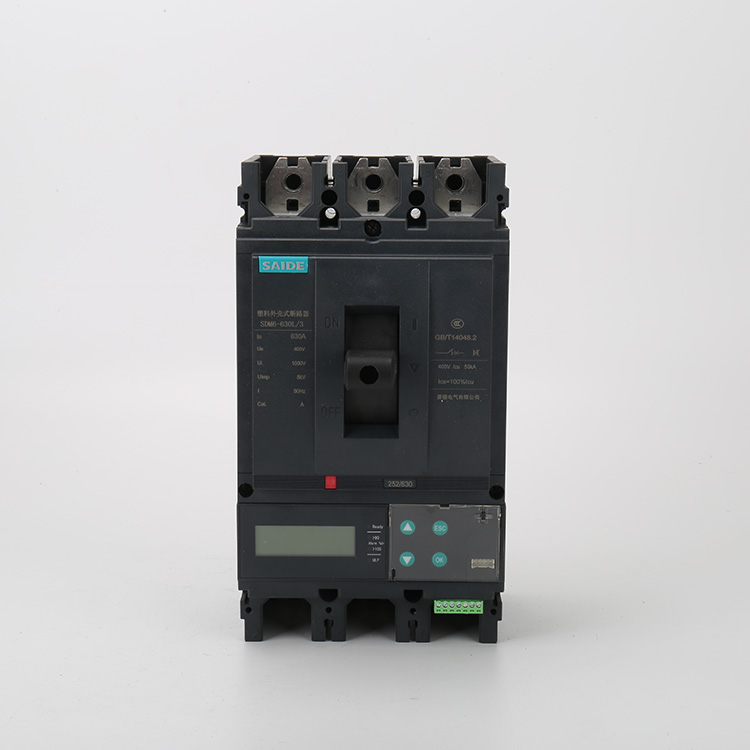

1. What Is a Molded Case Circuit Breaker (MCCB)?

A molded case circuit breaker is an electrical device designed to protect electrical circuits from damage caused by overloads, short circuits, and ground faults. Unlike fuses, which need to be replaced once they blow, an MCCB can be reset, making it more economical and efficient for continuous use. The "molded case" refers to the durable housing that encases the internal components, providing both physical protection and electrical insulation.

MCCBs are typically used in low- to medium-voltage applications, ranging from residential buildings to industrial settings, and are available in various current ratings, depending on the specific protection requirements.

2. Why Are MCCBs Crucial for Electrical Safety?

Electrical circuits, whether in homes, factories, or offices, are constantly at risk of faults that could lead to catastrophic outcomes, such as fires, equipment damage, or electrocution. MCCBs are essential for ensuring the safety and functionality of these systems by offering the following protection:

- Overload Protection: One of the primary functions of an MCCB is to protect circuits from overloads. When a circuit carries more current than it is rated for, the MCCB trips, preventing overheating and potential fire hazards.

- Short Circuit Protection: Short circuits are one of the most dangerous electrical faults. MCCBs can detect a short circuit almost instantly and break the circuit, stopping the flow of current to prevent damage to wiring, equipment, or even causing fires.

- Ground Fault Protection: MCCBs with ground fault protection detect differences between the live and neutral wires, indicating a potential leak to the ground. By interrupting the circuit, the MCCB minimizes the risk of electrical shock or fire caused by faulty wiring.

- Arc Fault Protection: Some MCCBs come with arc fault protection that detects and interrupts dangerous electrical arcs, preventing fires that could result from faulty or damaged wires.

3. How Do MCCBs Work?

The inner workings of a molded case circuit breaker are relatively simple but highly effective. The MCCB contains two primary mechanisms for interrupting the current:

- Thermal Trip Mechanism: This part of the MCCB is designed to react to overload conditions. When the current passing through the breaker exceeds the rated value for a prolonged period, the thermal element inside the MCCB heats up, causing it to bend and trip the breaker.

- Magnetic Trip Mechanism: This mechanism is designed to react to short circuit conditions. When a short circuit occurs, the current flow increases dramatically, causing the magnetic trip mechanism to activate and immediately trip the breaker, interrupting the flow of electricity.

Both trip mechanisms are carefully calibrated to provide quick and reliable protection, ensuring that the breaker responds appropriately in various fault scenarios.

4. What Are the Key Advantages of Using MCCBs?

Molded case circuit breakers provide several significant benefits, making them the preferred choice for many electrical applications:

- Adjustable Settings: Unlike fixed-trip fuses, MCCBs offer adjustable trip settings, allowing for customized protection based on the specific needs of the circuit. This flexibility is particularly valuable in industrial or commercial applications, where different equipment may require different levels of protection.

- Durability and Reliability: MCCBs are built with durable materials to withstand environmental conditions and continue functioning effectively over time. Their molded case construction protects against physical damage, moisture, and dust, making them suitable for both indoor and outdoor use.

- Resettable Design: Unlike fuses, which must be replaced after blowing, MCCBs can be reset once tripped. This feature reduces downtime and maintenance costs, making them a more cost-effective solution in the long run.

- Compact and Efficient: MCCBs are available in a range of sizes to suit different applications, from compact models for residential use to larger models for industrial machinery. Despite their small size, they provide excellent protection for electrical systems.

5. Where Are Molded Case Circuit Breakers Used?

MCCBs are widely used across various industries due to their ability to offer reliable protection in different environments:

- Residential Applications: In homes, MCCBs are often used in distribution boards to protect circuits from overloads and short circuits. They are typically installed in the main electrical panel to ensure safe operation of the electrical system.

- Commercial Buildings: For commercial and office buildings, MCCBs are used to protect larger electrical systems and equipment, such as HVAC systems, elevators, and lighting circuits. They ensure that the building’s electrical system is well-protected from faults.

- Industrial Settings: In factories and manufacturing plants, MCCBs are crucial for protecting heavy-duty machinery, motors, and electrical panels. With adjustable settings, MCCBs can be tailored to protect high-powered equipment from damage due to overloads or short circuits.

- Data Centers: Data centers, which rely on stable and continuous power, use MCCBs to protect critical systems and prevent downtime due to electrical faults. The reliability and resettable design of MCCBs are particularly valuable in these high-stakes environments.

- Power Distribution: In power distribution networks, MCCBs help safeguard transformers, circuit breakers, and other infrastructure components. They ensure that power is safely distributed and prevent damage from electrical faults.

6. What Should You Consider When Choosing an MCCB?

Choosing the right MCCB for your application requires careful consideration of several factors:

- Current Rating: The MCCB should have a current rating that matches the maximum expected load of the circuit. Be sure to select a breaker with an appropriate rating to avoid unnecessary trips or potential damage.

- Voltage Rating: Ensure that the MCCB is rated for the voltage of your electrical system. The voltage rating determines the maximum electrical potential that the breaker can safely handle.

- Trip Settings: Many MCCBs come with adjustable trip settings for overload and short circuit protection. Consider whether you need a fixed or adjustable setting, depending on the requirements of your system.

- Size and Mounting: Make sure the MCCB fits the available space in your electrical panel or distribution board. It should also be compatible with the mounting system in place.

- Additional Features: Some MCCBs offer advanced features such as remote trip signaling, arc fault protection, or thermal protection. Consider whether these features are necessary for your specific application.

7. What Is the Future of Molded Case Circuit Breakers?

As electrical systems become more complex and the demand for energy efficiency increases, MCCBs are likely to evolve with enhanced capabilities. Some of the future trends may include:

- Smart MCCBs: Integration with smart grids and energy management systems could allow MCCBs to provide real-time monitoring and remote control, enhancing both safety and efficiency.

- Higher Efficiency Standards: As the demand for energy-efficient systems grows, MCCBs may be designed to consume less power and offer even more precise protection.

- Enhanced Safety Features: New technologies may allow MCCBs to detect and respond to more advanced fault conditions, further improving safety in high-risk environments.

Conclusion

Molded case circuit breakers are vital components in electrical systems, offering unparalleled protection against overloads, short circuits, and other electrical faults. Their reliability, durability, and resettable design make them an essential choice for a wide range of applications, from residential to industrial. As electrical systems continue to grow more complex, the role of MCCBs will only become more crucial in ensuring safety and efficiency.
